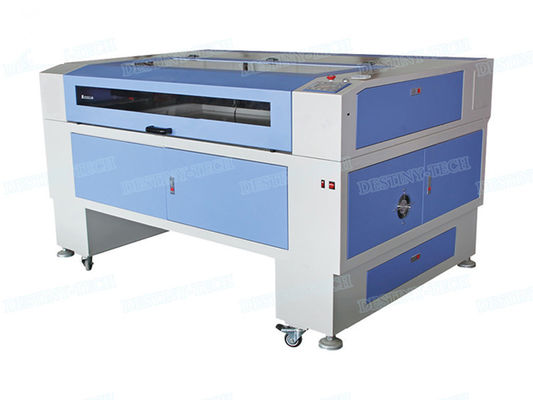

DT-1290 laser cutting macine for acrylic

DT-1290 laser cutting macine for acrylic

DT-1290 laser cutting macine for acrylic

Product Details:

Place of Origin: China
Brand Name: DESTINY
Certification: CE &FDA certificate
Model Number: DT-1290

Payment & Shipping Terms:

Price: 0-6000 USD
Packaging Details: Packed with CE standard plywood case with steel pipe pallet. The five pieces of package is from insi
Delivery Time: 7 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Minimum Order Quantity: 1 set
Detailed Product Description
Laser Type: CO2 Laser (Water Cooled ) Laser Power: 80w,100w,150w,180w Co2 Sealed Glass Laser Tube
Working Area: 1200mm*900mm Certificate: CE Certificate

DT-1290 model CO2 laser cutting machine for patterns



1.Performance Features:

1.      Configure high power laser tube.

2.      DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

3.      Owns functions of restoring from power off, continuation on break point.

4.      Transmit files directly in Coreldraw, AutoCAD,etc.

5.      Adopt international linear rail, more precision.

2.Parameters



Model

DT-1290

Laser Power

80W/100W/130W/150W/180W

Laser Type

sealed CO2laser tube,water-cooled,10.6um

Work Area

1200 X 900 mm

Cooling Type

Water-cooled and Protection System

Engraving Scanning Speed

0-60000 mm/min

Cutting Speed

0-5000mm/min

Laser Output Control

1-100% Software Setting

Smallest Character Engraving

English: 1.0X1.0 mm

Highest Scanning Precision

2500DPI

Power Supply

AC 110-220V±10%, 50-60Hz

Operating Temperature

0°-45°C

Operating Humidity

5%-95%

Locating Precision

≤±0.01mm

Supported File Format

DSTPLTBMPDXFAI

Compatible Software

TAJIMACORELDRAWPHOTOSHOPAUTOCADAll

Type of AUTOCAD Software in cloth

Slope Engraving

360°Slope Can Be Designed Easily

Driving System

Stepper Electrical Motor

Package Dimension

1950*1800*1400 mm

Net Weight

450 KGS

Gross Weight

500 KGS

Optional Spare Parts

Up-down Worktable, Rotary System, Honeycomb Worktable

Removable Spare Parts

Laser Tube and Lens

3.Applicable Industries

Model Industry(construction models, aviation and navigation models and wooden toys),advertisement, decoration, arts and crafts, electronics and electronic appliances, etc.

4.Applicable Materials

Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. double colored boards, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lamp shade, etc.

5.The warranty after-sale service

1).CE and FDA certificate,the machines are produced according to standard.

2).Two years quality guarantee for whole machineexcept of laser tube and lens ;

3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

4).The machines delivery is quickly,delivery time is short.

5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD

TIP:

We can meet your different needs and make the machine as per yur requirement.

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.
