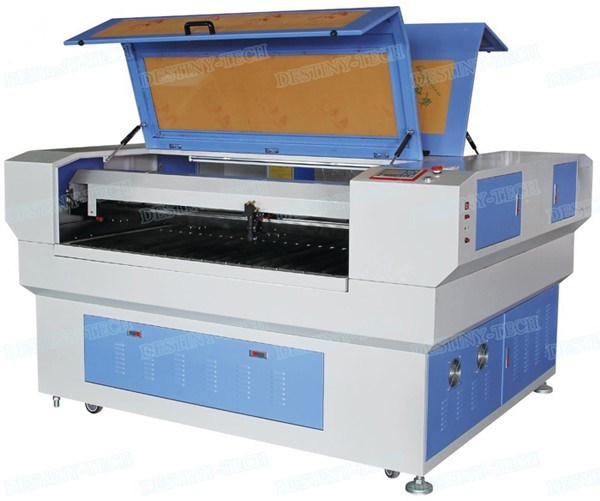

1318 150W double doors CO2 laser cutting machine for nonmetal material cutting

1318 150W double doors CO2 laser cutting machine for nonmetal material cutting

1318 150W double doors CO2 laser cutting machine for nonmetal material cutting

Product Details:

Place of Origin: Linyi city,China
Certification: CE certificate 2 yeas warranty
Model Number: DT-1318

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-8000 USD
Packaging Details: CE standard wooden case
Delivery Time: 7 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
Laser Power: 60W,80W ,100W , 150W ,180W Working Area: 1300mm*1800mm
Blower: Air Compressor Gassing System: Exhaust Fan And Air Pipe

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

DT-1318 double doors CO2 Laser cutting machine (Belts or ballscrew transmission)

Machine parameters

Machine Model

DT-1318 double doors

Working Size

1300mm *1800mm / 51.1 * 70.8 inch (X*Y axis )

Laser Power


Laser Type

Sealed CO2 glass laser tube, water-cooling ,10.6nm

Driving System

3-Phase Stepper Motor & Servo motor

Cutting Speed

0-50000mm/min  (1969 inch/min)

Engraving Speed

0-60000mm/min  (2362 inch/min)

Laser Output Control

1-100% software setting

Resetting Position Accuracy


Transmission type

Belts transmission & stepper motor or Ballscrew &Servo

Smallest  Character

Chinese 2.0 *2.0mm English 1.0*1.0mm

Highest Scanning precision

2500 DPI

Power Supply

220V/50Hz,  110V/60Hz,

Operating Temperature


Operating Humidity


Operating System

DSP CNC Control System in Win XP, Win 7

Graphic Format Supported


Software Supported

Corel draw, Photoshop, AutoCAD, Tajima

Optional device

Up &down table ,Rotary device ,Red light  pointer

Color separation












































Machine Descriptions

DT-1318 model laser cutting machine is made with double doors . The worker can process on these double doors position . The laser tube will move together the X axis frame at the same time to keep the laser stable . So it's more convenient to put the material board .And the machine body is more stable . The machine transmission system is optional . You can choose Belts and stepper motor transimission for engraving and cutting . Also you can choose Ball screw and servo motor transmission for cutting only . You can make a choice according your different material processing . This machine is better to cut thick plywood , MDF, Wood  ETC. die board cutting . With this machine,cutting works will be finished only by input file into program and setting laser power.The cutting accuracy will be around ±0.05mm, this is also no problem for complex file processing.With good laser device which make very small laser point,make sure same distance cutting space.

Suitable materials

Die board ,wood and plywood board ,Acrylic, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.

Suitable Industry

Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture,  mode, art and craft etc.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve      yourself online .

3. There are detail machine operation manual and video CD sent together with the machine.

If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
