Place of Origin: | Linyi city,China |
Brand Name: | DESTINY-TECH |
Certification: | CE certificate 2 yeas warranty |
Model Number: | DT-1325 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 0-8000 USD |
Packaging Details: | CE standard wooden case |
Delivery Time: | 7 workdays |
Payment Terms: | T/T advance |
Supply Ability: | 500 sets/month |
Laser Type: | Sealed CO2 Laser Tube | Cooling Type: | Water Chiller Cooling System |
---|---|---|---|
Laser Power: | 80W ,100W , 150W ,180W | Working Area: | 1300mm*2500mm |
Blower: | Air Compressor | Gassing System: | Exhaust Fan And Air Pipe |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

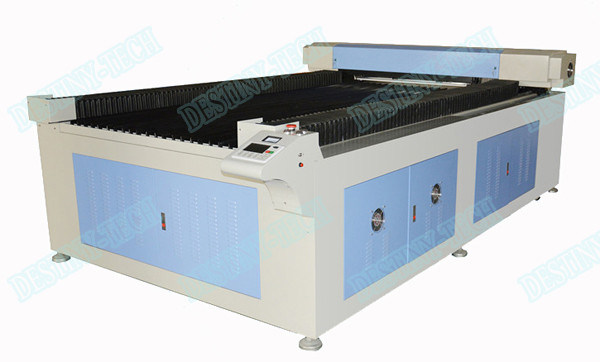

DT-1325 150W CNC CO2 laser cutting machine large bed
Machine parameters
Machine Model |
DT-1325 large bed |
Working Size |
1300mm *2500mm / 51.2 * 98.4 inch (X*Y axis ) |
Laser Power |
80w/100w/150w/180w |
Laser Type |
Sealed CO2 glass laser tube, water-cooling ,10.6nm |
Driving System |
3-Phase Stepper Motor & Servo motor |
Cutting Speed |
0-50000mm/min (1969 inch/min) |
Engraving Speed |
0-60000mm/min (2362 inch/min) |
Laser Output Control |
1-100% software setting |
Resetting Position Accuracy |
≤±0.01 |
Transmission type |
Belts transmission & stepper motor or Ballscrew &Servo |
Smallest Character |
Chinese 2.0 *2.0mm English 1.0*1.0mm |
Highest Scanning precision |
2500 DPI |
Power Supply |
220V/50Hz, 110V/60Hz, |
Operating Temperature |
0-45℃ |
Operating Humidity |
5-95% |
Operating System |
DSP CNC Control System in Win XP, Win 7 |
Graphic Format Supported |
BMP, PLT, AI, DST, DXF |
Software Supported |
Corel draw, Photoshop, AutoCAD, Tajima |
Optional device |
Up &down table ,Rotary device ,Red light pointer |
Color separation |
Yes |
Machine Descriptions
DT-1325 model laser cutting machine is made with big cutting bed body. The laser tube will move together the X axis frame at the same time to keep the laser stable . The worker can put the materail board around the machine .So it's more convenient .And the machine body is more strong and stable . The machine transmission system is optional . You can choose Belts and stepper motor transimission for engraving and cutting . Also you can choose Ball screw and servo motor transmission for cutting only . You can make a choice according your different material processing . This machine is better to cut thick plywood , MDF, Wood ETC. die board cutting .
Suitable materials
Die board ,wood and plywood board ,Acrylic, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.
Suitable Industry
Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture, mode, art and craft etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
