Place of Origin: | Linyi city,China |
Brand Name: | DESTINY-TECH |
Certification: | CE certificate 1 yeas warranty |
Model Number: | DT-3015 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | 0-200000USD |
Packaging Details: | CE standard wooden case |
Delivery Time: | 40 workdays |
Payment Terms: | T/T advance |
Supply Ability: | 200 sets/month |
Laser Type: | Fiber Laser Device | Cooling Type: | Air Cooling And Water Chiller Cooling System |
---|---|---|---|
Laser Power: | Raycus Or IPG Brand Fiber Laser | Working Area: | 3000mm*1500m |
Gas Type: | Oxygen Or Hydrogen | Tranmission System: | Rack Pinion And Square Guide Rail |
Motor And Drivers: | Japan Panasonic Servo Motor And Drivers | Warranty: | 1 Years For Whole Machine |
Fiber Laser Power: | 1000W |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

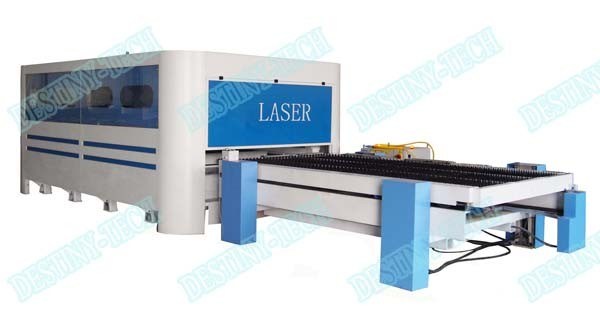

DT-3015 Fiber 1000w Autometic changing table Fiber laser cutting machine
Machine parameters
Machine Model |
DT-3015 1000w |
Working area |
3000mm *1500mm (118 inch *59 inch) |
Laser power |
1000w Raycus or IPG brand fiber laser device |
laser head |
Imported Germany PRECITEC Laser head, with auto sensor, adjust focal distance automatically |
Cooling system |
Sunrise water cooling chiller |
Rated power |
10-100% |
Laser wavelength |
1080nm |
X,Y-axis location accuracy |
±0.01mm |
X,Y-axis fast moving speed |
80m/min |
X,Y-axis max cutting speed |
45m/min |
Min. cutting line width |
0.02mm |
Max. cutting thickness |
Stainless steel 0.1-10mm Carbon steel 0.1-12mm |
Graphic format supported |
AI PLT DXF BMP DST DWG LAS DXP |
Power requirements |
380 V 50/60HZ |
After-sale service |
Technician available for training and installation |
Machine configurations
Term |
Model |
Parts |
Amount |
Remark |
|
1 |
DT- FIBER 3015 Auto-changed laser machine |
Machine bed |
1 set |
DESTINY-TECH |
|
2 |
Fiber laser source |
1 set |
China Raycus or Germany IPG |
||
3 |
Laser head |
1 set |
PRECITEC from Germany |
||
4 |
Water chiller |
1 set |
SUNRISE 3p |
||
5 |
Servo motor |
3 sets |
Panasonic |
||
6 |
Control system |
1 set |
PA 8000 |
||
7 |
Rack pinion |
2 sets |
Taiwan HIWIN |
||
8 |
Valid working area |
1500 * 3000mm |
Double exchange platform |
Working area can optional |
Machine Features
DT-3015 Fiber 1000w laser cutting machine adopts the most sophisticated laser source, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with high precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting.
Machine advantages
1.Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality
2. Cutting speed: 2 times the same power over carbon dioxide laser cutting machine
3. Stable performance, laser life of up to 100,000 hours
4.Electro-optical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving
5.Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30%
6. Low maintenance costs: no laser working gas; optical fiber transmission, without reflection lenses; may save a lot of maintenance costs
7.Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path
8.Flexible light guide effect: small, compact, easy to flexible manufacturing needs
Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum.
Application Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool pro cessing, adornment, advertising, metal foreign processing various manufacturing processing industries.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
