6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine high quality

6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine high quality

6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine high quality

Product Details:

Place of Origin: Linyi city,China
Brand Name: DESTINY-TECH
Certification: CE certificate 2 yeas warranty
Model Number: DT-6000/8000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-140000USD
Packaging Details: CE standard wooden case
Delivery Time: 40 workdays
Payment Terms: T/T advance
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description
Laser Type: Fiber Laser Device Cooling Type: Air Cooling And Water Chiller Cooling System
Laser Power: Raycus Or IPG Brand 500W /800W Fiber Laser Working Area: 6m Or 8m Metal Pipe
Gas Type: Oxygen Or Hydrogen Tranmission System: Auto Transfering System For Metal Pipe
Motor And Drivers: Japan Panasonic Servo Motor And Drivers Warranty: 1 Years For Whole Machine
Metal Material Type: Square & Round Metal Pipe , SS,CS Sheet Etc.

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

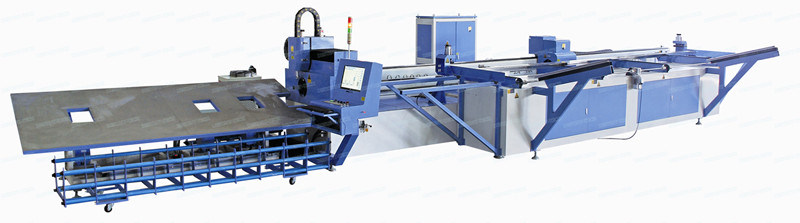

DT- 6000/8000 Fiber 500w Automatic 6m/8m metal pipe laser cutting machine

DT-6000/8000 is independently researched, this machine can auto-loading, auto-feeding and auto-cutting; it also can automatically collecting and the finished cutting tube and waste. Machine is equipped with intersecting curve cutting and arbitrary angle bevel cutting function; it is mainly used for cutting pipe, tube and oval tube. Its characteristic is high-efficiency and high-precision. Suitable industry like: sport equipment, tube industry, medical equipment, etc.
Parameters

Machine Model

DT-6000/8000 500W

Max. cutting length

6000mm/8000mm(236 inch / 315 inch)

Laser power

500W Raycus or IPG  brand fiber laser device

laser head

Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically

Cutting thickness

0.2-5mm stainless steel / 0.2-6mm carbon steel

Cooling system

CW-6100 or Sunrise water cooling chiller

Rated power

10-100%

Machine power

10KW

Laser wavelength

1080nm

X,Y-axis location accuracy

±0.01mm

X,Y-axis repeat location accuracy

±0.01mm

X,Y-axis fast moving speed

30m/min

X,Y-axis max cutting speed

20m/min

Min. cutting line width

0.02

Max. cutting thickness

Stainless steel 3-5mm     Carbon steel 4-6 mm

Max. cutting speed

12m/ min

After-sale service

Technician available for training and installation

Machine Configurtaions

Terms

Model

Parts

Amount

Brand or details

1

DT-FIBER 500W

Machine body

1 set

DESTINY-TECH

2

Fiber laser device

1 set

China Raycus or Germany IPG

3

Laser head

1 set

Bochu or Lasermech  laser head

4

Water chiller

1 set

Sunrise 1 P or CW 6100

5

Servo motor

3 sets

Panasonic

6

Control system

1 set

Bochu (Cypcut) system

7

Auto pipe feeding system

1 set

DT-TECH

8

Valid pipe working length

6000mm

8000mm

Working length optional

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .

3. There are detail machine operation manual and video CD sent together with the machine.



If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
