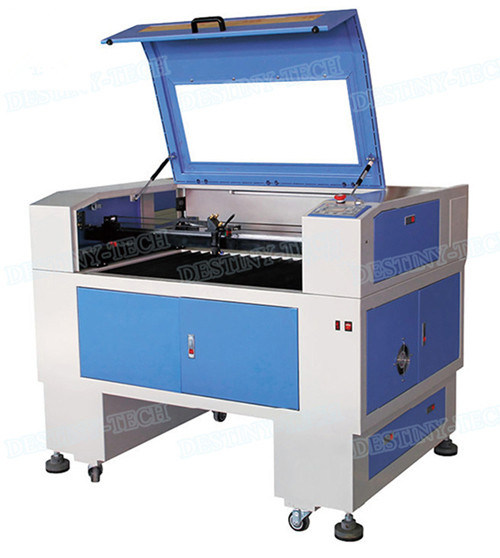

DT-9060 80W CO2 laser engraving and cutting machine

DT-9060 80W CO2 laser engraving and cutting machine

DT-9060 80W CO2 laser engraving and cutting machine

Product Details:

Place of Origin: Jinan city,China
Brand Name: DESTINY
Certification: CE and FDA certificate 2 yeas warranty
Model Number: DT-9060

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-5000 USD
Packaging Details: CE standard wooden case
Delivery Time: 7 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: CO2 Laser Cooling Type: Water Cooled
Laser Power: 60W,80W ,100W , 150W Working Area: 900mm*600mm

DT 900*600mm CO2 laser engraving and cutting machine

Performance Features:

DT-9060 laser engraving and cutting machine is one  most popular laser model.We can make the body as per your different requiement.The machine is high configuration with 3 phase stepper motor laser machine.The standard transmission is stong belt .You can also choose ballscrew servo m otor transmission.DT-9060 double heads laser machine improve the working efficiency.It can engrave and cut at the same time or first to engrave then to cut.

We innovate the DT-9060 laser machine body,its height is most suit to worker.900 *600mm worktable,you can choose oxidated tool section or high precision honeycomb platform as per your materials feature.There are two doors behind and front machine.It extend the working area,easier to put down the materials.You can choose up&down platform or material hutch .

The machine is installed four wheels,it's easier to move ,you can change any places you like.In addition,there are four footstands near the wheels.When you start to use machine,you just put them down on the earth.It can make the laser engraving and cutting more stable.

We adopt advanced DSP control system,and high definition microcomputer control panel with USB outline interface.You can choose the languages,such as Chinese,English,Korean,Russian etc.

Machine parameters



Laser Power


Laser Type

sealed CO2laser tube,water-cooled,10.6um

Work Area

900 X 600 mm

Cooling Type

Water-cooled and Protection System

Engraving Scanning Speed

0-70000 mm/min

Cutting Speed


Laser Output Control

1-100% Software Setting

Smallest Character Engraving

English: 1.0X1.0 mm

Highest Scanning Precision


Power Supply

AC 110-220V±10%, 50-60Hz

Operating Temperature


Operating Humidity


Locating Precision


Supported File Format


Compatible Software


Type of AUTOCAD Software in cloth

Driving System

Stepper Electrical Motor

Package Dimension


Net Weight

400 KGS

Gross Weight

500 KGS

Optional Spare Parts

Up-down Worktable, Rotary System, Honeycomb Worktable

Removable Spare Parts

Laser Tube and Lens

Applicable Industries

Model Industry(construction models, aviation and navigation models and wooden toys),advertisment, decoration, art crafts, electronics, and electric appliances, etc.

Applicable Materials

Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, lamp shade, ect.

Our laser machines can be customized according to your special needs.

The warranty after-sale service

1).CE and FDA certificate,the machines are produced according to standard.

2).Two years quality guarantee for whole machine except of laser tube and lens ;

3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

4).The machines delivery is quickly,delivery time is short.

5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.
