Fabric clothe laser cuttingDT-1630 Large bed auto feeding fabric CO2 Laser cutting machine

Fabric clothe laser cuttingDT-1630 Large bed auto feeding fabric CO2 Laser cutting machine

Fabric clothe laser cuttingDT-1630 Large bed auto feeding fabric CO2 Laser cutting machine

Product Details:

Place of Origin: Linyi city,China
Brand Name: DESTINY-TECH
Certification: CE certificate 2 yeas warranty
Model Number: DT-1630

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-14000 USD
Packaging Details: CE standard wooden case
Delivery Time: 15 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
Laser Power: 80W ,100W , 150W Working Area: 1600mm*3000m
Blower: Air Compressor Gassing System: Exhaust Fan And Air Pipe

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

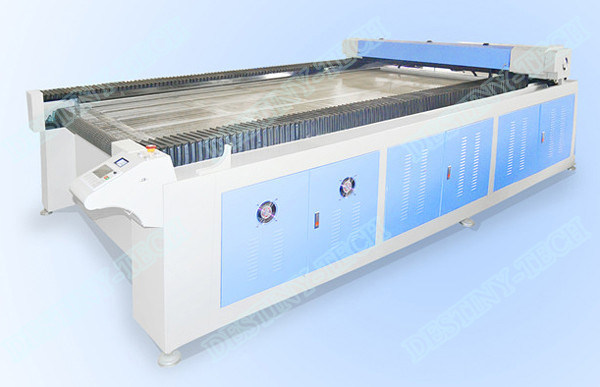

DT-1630 Large bed auto feeding fabric CO2 Laser cutting machine

Machine parameters

Machine Model

DT-1630 Large bed auto feeding

Working Size

1600 * 3000 mm / 63 in * 118 in ( X * Y axis)

Laser Power

80w/100w/150w

Laser Type

Sealed CO2 glass laser tube, water-cooling ,10.6nm

Driving System

3-Phase Stepper Motor &Belts transmission

Cutting Speed

0-40000mm/min  (1575inch/min)

Engraving Speed

0-60000mm/min  (2362 inch/min)

Laser Output Control

1-100% software setting

Resetting Position Accuracy

≤±0.01

Smallest  Character

Chinese 2.0 *2.0mm English 1.0*1.0mm

Highest Scanning precision

2500 DPI

Power Supply

220V/50Hz,  110V/60Hz,

Operating Temperature

0-45℃

Operating Humidity

5-95%

Operating System

DSP CNC Control System in Win XP, Win 7

Graphic Format Supported

BMP, PLT, AI, DST, DXF

Software Supported

Corel draw, Photoshop, AutoCAD, Tajima

Optional device

Red light  pointer

Color separation

Yes

Product descriptions

DT-1630 laser cutting machine with auto feeding system adopts crawler-type worktable,dual laserhead mutual move processing and auto-feeding system, the rolls of the machine are able to roll up the large material automatically,providing the fast cutting speed,high utilization rate of material and continuous cutting.

Applicable Materials
Cloth, fabric, leather, woolen, paper, film etc. soft materials

Applicable Industries
Garment,car inside decoration materials ,leather,toys indsutry, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration,building upholster, package, printing, paper product and other industries.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

3. There are detail machine operation manual and video CD sent together with the machine.



If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
