Laser CCD scanning camera DT 1610 100W CNC CO2 seal laser cutting machine

Laser CCD scanning camera DT 1610 100W CNC CO2 seal laser cutting machine

    • Laser CCD scanning camera DT 1610  100W CNC CO2 seal laser cutting machine
    • Laser CCD scanning camera DT 1610  100W CNC CO2 seal laser cutting machine
  • Laser CCD scanning camera DT 1610  100W CNC CO2 seal laser cutting machine

    Product Details:

    Place of Origin: Linyi city,China
    Brand Name: DESTINY-TECH
    Certification: CE certificate 2 yeas warranty
    Model Number: DT-1610

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-7000 USD
    Packaging Details: CE standard wooden case
    Delivery Time: 7 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
    Laser Power: 80W ,100W , 150W ,180W Working Area: 1600mm*1000mm
    Blower: Air Compressor Gassing System: Exhaust Fan And Air Pipe
    CCD: Scanning Camera CCD Working Area: 300mm*300mm

    DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

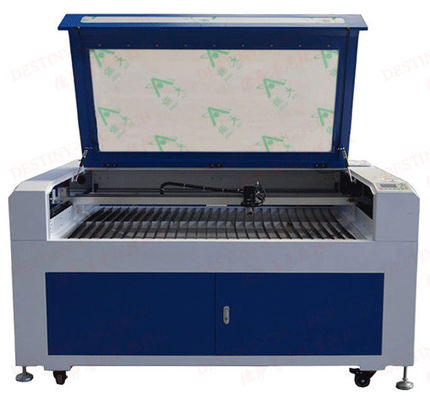

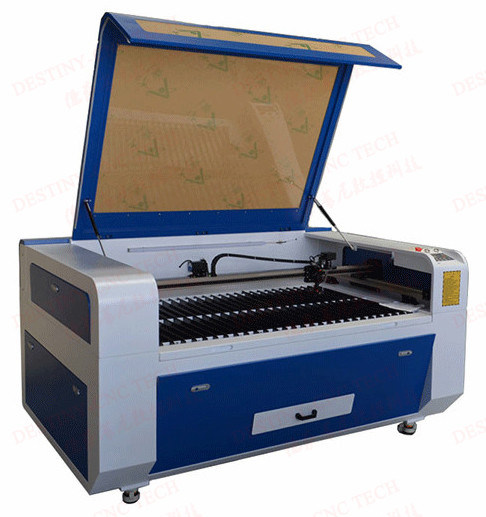

    DT-1610 Auto CCD CO2 Laser cutting machine

    Machine parameters

    Machine Model

    DT-1610 auto CCD (300*300mm)

    Working Size

    1600*1000 mm / 63 in*39.3 in   (X * Y axis)

    Laser Power

    80w/100w

    Laser Type

    Sealed CO2 glass laser tube, water-cooling ,10.6nm

    Driving System

    3-Phase Stepper Motor &Belts transmission

    Cutting Speed

    0-40000mm/min

    Engraving Speed

    0-70000 mm/min

    Laser Output Control

    1-100% software setting

    Resetting Position Accuracy

    ≤±0.01

    Camera Pixe

    320,000

    Resolution

    < 4500 DPI

    Power Supply

    220V/50Hz,  110V/60Hz,

    Operating Temperature

    0-45℃

    Operating Humidity

    5-95%

    Operating System

    DSP CNC Control System in Win XP, Win 7

    Graphic Format Supported

    BMP, PLT, AI, DST, DXF

    Software Supported

    Corel draw, Photoshop, AutoCAD, Tajima

    Color Separation Yes





















































    Machine descriptions

    DT series CCD laser cutting machines are specially for deformation of cloth,in the camera positioning visual systerm and cutting down the software work ,ccd laser cutting machine can compensate automatically to pinpoint deformation of the fabric and ensure the accuracy of cutting ,the laser cutting machine with automatic camera positioning will search for the workpiece which is processed after the picture is imported into computer by the vision system machine,it can prevent the inaccuracy of the cutting correctly. Because of the poweful DSP technology of high-end data processing ,specific design and precise machinery

    software of mechanical systerm,meticulous in high-speed operation conditions ,cutting lines and curves no deformation rapid continuous curvilinear cutting funtion.

    Applicable materials

    Fabrics,leather,paper.bamboo ware,acrylic,glass,thin film and canvas,etc.

    Applicable industries

    Garments sampling,trademark,leather industry,shoemaking,decoration,advertisement industries,etc.

    After-sale service and Warranty

    1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

    2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

    3. There are detail machine operation manual and video CD sent together with the machine.

    If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
