Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine

Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine

    • Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine
    • Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine
    • Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine
  • Marble laser engraving DT-1318 100W Stone download table CNC CO2 laser engraving machine

    Product Details:

    Place of Origin: Linyi city,China
    Brand Name: DESTINY-TECH
    Certification: CE certificate 2 yeas warranty
    Model Number: DT-1318

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-9000 USD
    Packaging Details: CE standard wooden case
    Delivery Time: 10 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
    Laser Power: 60W,80W ,100W Working Area: 1300mm*1800mm
    Blower: Air Pump Gassing System: Exhaust Fan And Air Pipe
    Applicable Materials: Marble,granite , Glass, Stone , Wood ,plywood ,MDF, Fabric, Leather Etc.

    DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

    DT-1318 download CO2 Laser engraving machine for marble stone

    Machine parameters

    Machine Model

    DT-1318 download

    Working Size

    1300*1800 mm / 51.2 in * 70.8 in ( X * Y axis)

    Laser Power

    80w/100w

    Laser Type

    Sealed CO2 glass laser tube, water-cooling ,10.6nm

    Driving System

    3-Phase Stepper Motor &Belts transmission

    Cutting Speed

    0-40000mm/min  (1575inch/min)

    Engraving Speed

    0-70000mm/min  (2756 inch/min)

    Laser Output Control

    1-100% software setting

    Resetting Position Accuracy

    ≤±0.01

    Smallest  Character

    Chinese 2.0 *2.0mm English 1.0*1.0mm

    Highest Scanning precision

    2500 DPI

    Power Supply

    220V/50Hz,  110V/60Hz,

    Operating Temperature

    0-45℃

    Operating Humidity

    5-95%

    Operating System

    DSP CNC Control System in Win XP, Win 7

    Graphic Format Supported

    BMP, PLT, AI, DST, DXF

    Software Supported

    Corel draw, Photoshop, AutoCAD, Tajima

    Optional device

    Rotary device ,Red light  pointer

    Color separation

    Yes

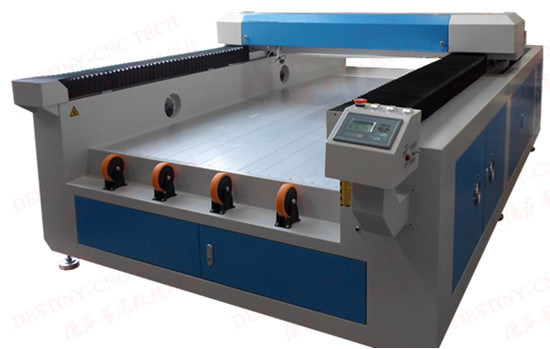

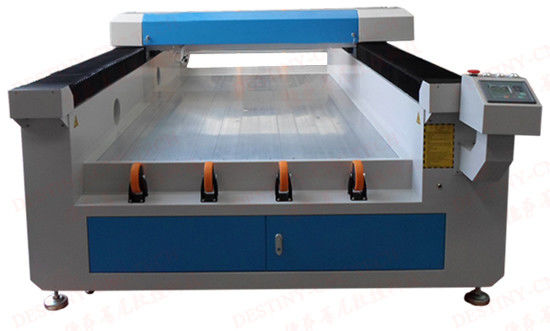

    Machine descriptions

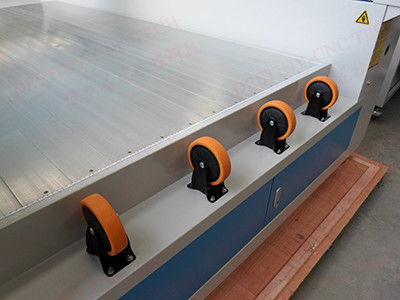

    For enrgaving the big tombstone or other big marble ,granite etc. stones . We made a special laser engraving machine with download flat table and wheels . DT-1318 download laser engraving machine is special for stone engraving processing . Its worktable is download , this can keep the thick marble stone through on the table.For the wheels , you can pull the big marble board into the worktable .That will be easier and fast to put heavy stone . The flat table is made by aluminium alloy board .It can hold up 1.5-2 T heavy material .It also keep the life longer . For tombstone , stone decoration or some stone processing .It's a good choice .

    Applicable materials and indusctries

    Marble,granite, glass, tiles,tombstone,ceramics ,wood ,plywood, acrylic or other thick materials etc.

    After-sale service and Warranty

    1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

    2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

    3. There are detail machine operation manual and video CD sent together with the machine.

    If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
