| Place of Origin: | Linyi city,China |
| Brand Name: | DESTINY-TECH |
| Certification: | CE certificate 2 yeas warranty |
| Model Number: | DT-1325/1530 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 0-90000USD |
| Packaging Details: | CE standard wooden case |
| Delivery Time: | 40 workdays |
| Payment Terms: | T/T advance |
| Supply Ability: | 200 sets/month |
| Laser Type: | Fiber Laser Device | Cooling Type: | Air Cooling And Water Chiller Cooling System |
|---|---|---|---|
| Laser Power: | Raycus Or IPG Brand 500W Fiber Laser | Working Area: | 1300mm*2500m / 1500mm*3000mm |
| Gas Type: | Oxygen Or Hydrogen | Tranmission System: | Rack Pinion And Square Guide Rail |
| Motor And Drivers: | Japan Panasonic Servo Motor And Drivers | Warranty: | 1 Years For Whole Machine |
| Metal Material Type: | Square & Round Metal Pipe , SS,CS Sheet Etc. |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

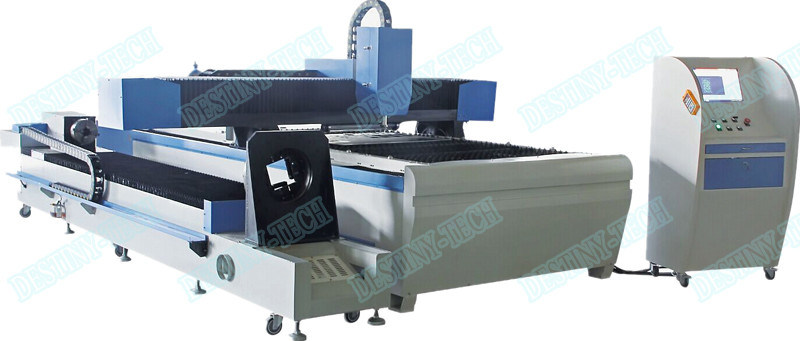

DT-1325/1530 Fiber 500W Metal laser cutting machine with 3m or 6m square and round pipe system
Machine parameters
|
Machine Model |
DT-1325/1530 500W |
|
Working area |
1300×2500mm/51×98in or 1500×3000mm 59×118in |
|
Laser power |
500W Raycus or IPG brand fiber laser device |
|
laser head |
Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically |
|
Cutting thickness |
0.2-5mm stainless steel / 0.2-6mm carbon steel |
|
Cooling system |
CW-6100 or Sunrise water cooling chiller |
|
Rated power |
10-100% |
|
Machine power |
10KW |
|
Laser wavelength |
1080nm |
|
X,Y-axis location accuracy |
±0.01mm |
|
X,Y-axis repeat location accuracy |
±0.01mm |
|
X,Y-axis fast moving speed |
30m/min |
|
X,Y-axis max cutting speed |
20m/min |
|
Min. cutting line width |
0.02 |
|
Max. cutting thickness |
Stainless steel 3-5mm Carbon steel 4-6 mm |
|
Max. cutting speed |
12m/ min |
|
Machine size |
4.0×2.5×1.7m |
|
After-sale service |
Technician available for training and installation |
Machine configurations
|
Term |
Model |
Parts |
Amount |
Brand |
|
1 |
DY FIBER 500W |
Machine bed |
1 set |
DESTINY-TECH |
|
2 |
Fiber laser device |
1 set |
China Raycus or Germany IPG |
|
|
3 |
Laser head |
1 set |
Bochu or Lasermech laser head |
|
|
4 |
Water chiller |
1 set |
Sunrise 1 P or CW 6100 |
|
|
5 |
Servo motor |
3 sets |
Panasonic |
|
|
6 |
Control system |
1 set |
Bochu (Cypcut) system |
|
|
7 |
Ball screw |
2 sets |
Taiwan HIWIN |
|
|
8 |
Working area |
1300 * 2500mm 1500 * 3000mm |
Working area optional |
|
Machine introductions
This machine is special designed for square and round pipe with professional cutting software. You can cut flat metal sheet and square& round pipe at same time. The machine is with high quality fiber laser generator, high precision TAIWAN "HIWIN" ball screw transmission and advanced automation NC system, this product is getting high and new technology in one which by laser cutting and high precision machinery NC technology. Getting high speed, high precision, high efficiency and low cost together perfectly, this product can be the best choice for bulk metal materials cutting job.DESTINY-TECH laser machine is with optimized CNC control system, which can meet the processing demand in high precision accessory. The machine body is with casting frame, that suit for the long hours constantly working.
Machine advantages
1.Fiber laser cutting machine is with higher speed, higher precision and higher efficiency than YAG laser , the processing cost is very low ,can save much cost and make more profit
2. Fiber laser machine operation is more easier . Fiber optical path, without tediously adjustment on optical path,if the technician learned how to operate the machine ,he can process at once.
3.Fiber laser machine producer is with compact structure, good sealing, strongly adaptable to changes in the environment.
4. The machine is with the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%.
5.High quality in cutting edge, adopting Friendness brand or the U.S.A imported follow-up cutting head system with high sensitivity and stability. The cutting head moving is with variation of the plate. The cut-off point position will remain unchanged. The cutting kerf is flat and smooth , needn’t to handle it again. Meanwhile, the machine can be use to cut both of the flat materials and curving materials .
6. Cutting large format and suitable for cutting more material.The machine can cut metal sheet within the thickness of 6mm and not larger than the size of 1500mm x 3000mm. The applicable materials include: ordinary carbon steel, stainless steel, titanium, etc.
7.With drawer to collect the garbage, easy to change the gas valve.
8. High performance-price ratio
9. Low cost for using
10. Higher cutting speed and efficiency
11. Low fees for the future maintain.This laser machine is with simple structure, easy to operate with high stability.
Applicable materials and industries
Fiber laser machine is available for stainless steel, carbon steel, mild carbon steel, titanium sheet, galvanized sheet etc. metal materials precise cutting, applicable for cabinet making ,metal box making, furniture and office supplies ,LED or light box , ATM box,electric appliance cabinet ,safe box ,agriculture tools,machine’s processing parts , Medical tools ,aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing ,advertisement, kitchen ware, bit tool, hardware etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
