    Product Details:

    Place of Origin: China
    Brand Name: DESTINY
    Certification: CE &FDA certificate
    Model Number: DT-1290

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 0-6000 USD
    Packaging Details: Packed with CE standard plywood case with steel pipe pallet. The five pieces of package is from insi
    Delivery Time: 7 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: CO2 Laser (Water Cooled ) Laser Power: 80w,100w,150w,180w Co2 Sealed Glass Laser Tube
    Working Area: 1200mm*900mm Certificate: CE Certificate

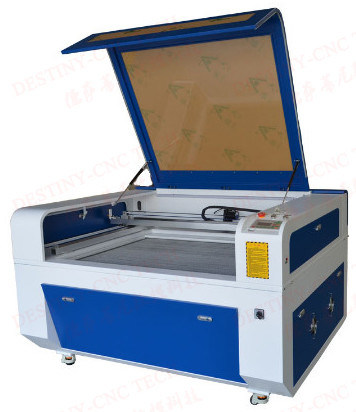

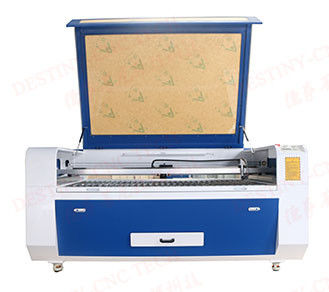

    DT-1290 model CO2 laser cutting machine for patterns



    1.Performance Features:

    1.      Configure high power laser tube.

    2.      DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.

    3.      Owns functions of restoring from power off, continuation on break point.

    4.      Transmit files directly in Coreldraw, AutoCAD,etc.

    5.      Adopt international linear rail, more precision.

    2.Parameters



    Model

    DT-1290

    Laser Power

    80W/100W/130W/150W/180W

    Laser Type

    sealed CO2laser tube,water-cooled,10.6um

    Work Area

    1200 X 900 mm

    Cooling Type

    Water-cooled and Protection System

    Engraving Scanning Speed

    0-60000 mm/min

    Cutting Speed

    0-5000mm/min

    Laser Output Control

    1-100% Software Setting

    Smallest Character Engraving

    English: 1.0X1.0 mm

    Highest Scanning Precision

    2500DPI

    Power Supply

    AC 110-220V±10%, 50-60Hz

    Operating Temperature

    0°-45°C

    Operating Humidity

    5%-95%

    Locating Precision

    ≤±0.01mm

    Supported File Format

    DSTPLTBMPDXFAI

    Compatible Software

    TAJIMACORELDRAWPHOTOSHOPAUTOCADAll

    Type of AUTOCAD Software in cloth

    Slope Engraving

    360°Slope Can Be Designed Easily

    Driving System

    Stepper Electrical Motor

    Package Dimension

    1950*1800*1400 mm

    Net Weight

    450 KGS

    Gross Weight

    500 KGS

    Optional Spare Parts

    Up-down Worktable, Rotary System, Honeycomb Worktable

    Removable Spare Parts

    Laser Tube and Lens

    3.Applicable Industries

    Model Industry(construction models, aviation and navigation models and wooden toys),advertisement, decoration, arts and crafts, electronics and electronic appliances, etc.

    4.Applicable Materials

    Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. double colored boards, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lamp shade, etc.

    5.The warranty after-sale service

    1).CE and FDA certificate,the machines are produced according to standard.

    2).Two years quality guarantee for whole machineexcept of laser tube and lens ;

    3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

    4).The machines delivery is quickly,delivery time is short.

    5).24 hours technical support by e-mail, calling or door-to-door service
    6).English software, user manual and detailed Videos CD

    TIP:

    We can meet your different needs and make the machine as per yur requirement.

    DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.
