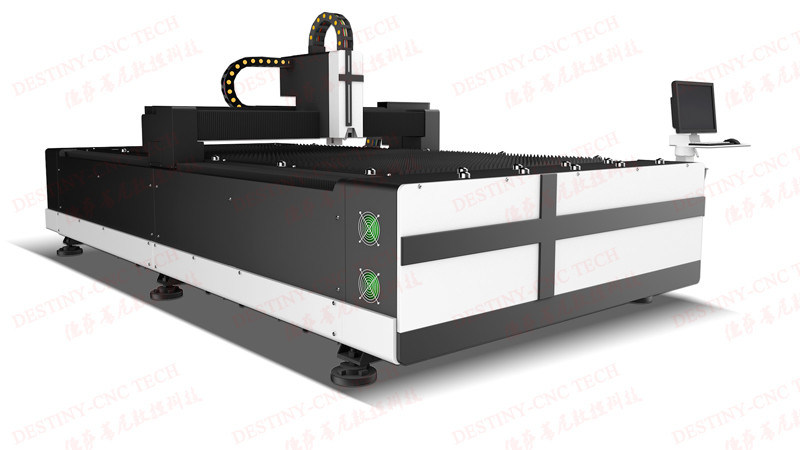

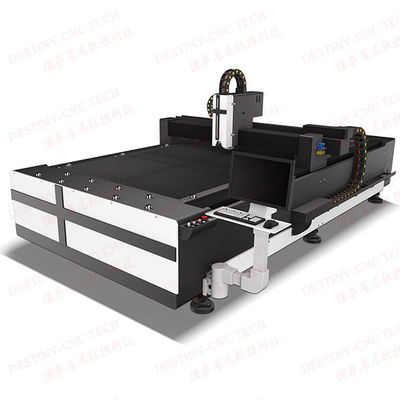

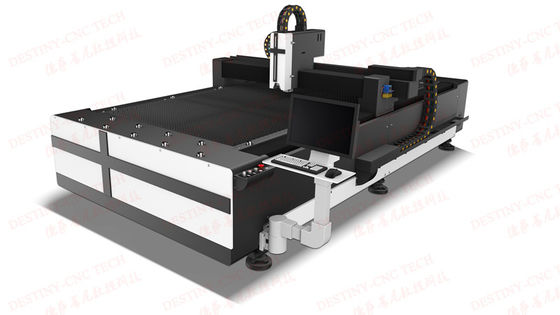

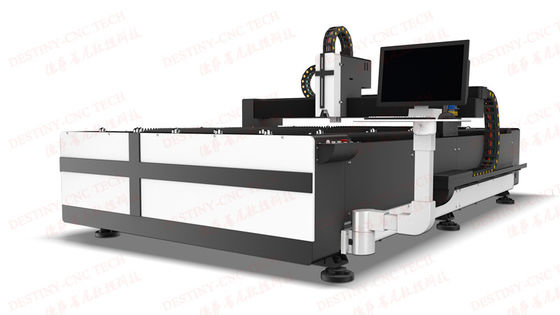

Stainless & Carbon steel sheet cuttingDT-1530 Heavy duty 1000w Fiber laser cutting machine

Stainless & Carbon steel sheet cuttingDT-1530 Heavy duty 1000w Fiber laser cutting machine

Stainless & Carbon steel sheet cuttingDT-1530 Heavy duty 1000w Fiber laser cutting machine

Product Details:

Place of Origin: Linyi city,China
Brand Name: DESTINY-TECH
Certification: CE certificate 1 yeas warranty
Model Number: DT-1530

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-150000USD
Packaging Details: CE standard wooden case
Delivery Time: 30 workdays
Payment Terms: T/T advance
Supply Ability: 200 sets/month
Detailed Product Description
Laser Type: Fiber Laser Device Cooling Type: Air Cooling And Water Chiller Cooling System
Laser Power: Raycus Or IPG Brand Fiber Laser Working Area: 1500mm*3000m
Gas Type: Oxygen Or Hydrogen Tranmission System: Rack Pinion And Square Guide Rail
Motor And Drivers: Japan Panasonic Servo Motor And Drivers Warranty: 1 Years For Whole Machine
Fiber Laser Power: 1000W

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

DT-1530 Heavy duty 1000w Fiber laser cutting machine

Machine parameters

Machine Model

DT-1530 Heavy duty1000W

Working area

1500×3000mm 59×118in

Laser power

1000W Raycus or IPG  brand fiber laser device

laser head

Friendness or lasermech laser head , with auto sensor, adjust focal distance automatically

Cutting thickness

0.2-6mm stainless steel / 0.2-10mm carbon steel

Cooling system

Water chiller

Rated power

10-100%

Machine power

15KW

Laser wavelength

1080nm

X,Y-axis location accuracy

±0.01mm

X,Y-axis repeat location accuracy

±0.01mm

X,Y-axis fast moving speed

30m/min

X,Y-axis max cutting speed

20m/min

Min. cutting line width

0.02

Max. cutting thickness

Stainless steel 4-6mm     Carbon steel 8-10 mm

Max. cutting speed

15m/ min

Machine size

4.5×2.5×1.7m

After-sale service

Technician available for training and installation

Machine configurations

Term

Model

Parts

Amount

Remark

1

DT-1530 FIBER laser machine

Machine bed

1 set

DESTINY-TECH

2

Fiber laser source

1 set

China Raycus or Germany IPG

3

Laser head

1 set

Friendness or lasermech

4

Water chiller

1 set

SUNRISE

5

Servo motor

3 sets

Panasonic

6

Control system

1 set

Bochu (Cypcut) system

7

Rack pinions

4 sets

Taiwan HIWIN

8

Valid working area

1500 * 3000mm







Machine Features

DT-1530 Heavy duty Fiber 1000w laser cutting machine adopts the most sophisticated laser source, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with high precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting.

Machine advantages

1.Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality

2. Cutting speed: 2 times the same power over carbon dioxide laser cutting machine

3. Stable performance, laser life of up to 100,000 hours

4.Electro-optical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving

5.Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30%

6. Low maintenance costs: no laser working gas; optical fiber transmission, without reflection lenses; may save a lot of maintenance costs

7.Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path

8.Flexible light guide effect: small, compact, easy to flexible manufacturing needs

Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum.

Application Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool pro cessing, adornment, advertising, metal foreign processing various manufacturing processing industries.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .

3. There are detail machine operation manual and video CD sent together with the machine.

If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
