| Place of Origin: | China |
| Brand Name: | DESTINY |
| Certification: | CE &FDA certificate |
| Model Number: | DT-1290 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 0-6000 USD |
| Packaging Details: | Packed with CE standard plywood case with steel pipe pallet. The five pieces of package is from insi |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T advance |
| Supply Ability: | 500 sets/month |
| Laser Type: | CO2 Laser (Water Cooled ) | Laser Power: | 80w,100w,150w,180w Co2 Sealed Glass Laser Tube |
|---|---|---|---|
| Working Area: | 1200mm*900mm | Certificate: | CE Certificate |

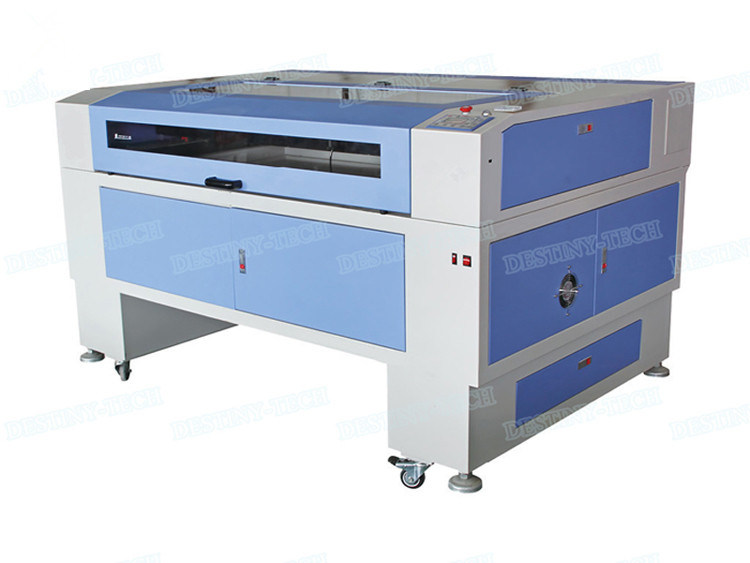

DT-1290 model CO2 laser cutting machine for patterns
1.Performance Features:
1. Configure high power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
2.Parameters
|
Model |
DT-1290 |
|
Laser Power |
80W/100W/130W/150W/180W |
|
Laser Type |
sealed CO2laser tube,water-cooled,10.6um |
|
Work Area |
1200 X 900 mm |
|
Cooling Type |
Water-cooled and Protection System |
|
Engraving Scanning Speed |
0-60000 mm/min |
|
Cutting Speed |
0-5000mm/min |
|
Laser Output Control |
1-100% Software Setting |
|
Smallest Character Engraving |
English: 1.0X1.0 mm |
|
Highest Scanning Precision |
2500DPI |
|
Power Supply |
AC 110-220V±10%, 50-60Hz |
|
Operating Temperature |
0°-45°C |
|
Operating Humidity |
5%-95% |
|
Locating Precision |
≤±0.01mm |
|
Supported File Format |
DSTPLTBMPDXFAI |
|
Compatible Software |
TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
|
Slope Engraving |
360°Slope Can Be Designed Easily |
|
Driving System |
Stepper Electrical Motor |
|
Package Dimension |
1950*1800*1400 mm |
|
Net Weight |
450 KGS |
|
Gross Weight |
500 KGS |
|
Optional Spare Parts |
Up-down Worktable, Rotary System, Honeycomb Worktable |
|
Removable Spare Parts |
Laser Tube and Lens |
3.Applicable Industries
Model Industry(construction models, aviation and navigation models and wooden toys),advertisement, decoration, arts and crafts, electronics and electronic appliances, etc.
4.Applicable Materials
Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. double colored boards, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lamp shade, etc.
5.The warranty after-sale service
1).CE and FDA certificate,the machines are produced according to standard.
2).Two years quality guarantee for whole machineexcept of laser tube and lens ;
3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;
4).The machines delivery is quickly,delivery time is short.
5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD
TIP:
We can meet your different needs and make the machine as per yur requirement.
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.
