| Place of Origin: | Linyi city,China |
| Brand Name: | DESTINY-TECH |
| Certification: | CE certificate 2 yeas warranty |
| Model Number: | DT-1325/1530 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 0-50000USD |
| Packaging Details: | CE standard wooden case |
| Delivery Time: | 30 workdays |
| Payment Terms: | T/T advance |
| Supply Ability: | 200 sets/month |
| Laser Type: | Fiber Laser Device | Cooling Type: | Air Cooling And Water Chiller Cooling System |
|---|---|---|---|
| Laser Power: | Raycus Or IPG Brand 500W Fiber Laser | Working Area: | 1300mm*2500m Or 1500mm*3000mm |
| Gas Type: | Oxygen Or Hydrogen | Tranmission System: | Rack Pinion And Square Guide Rail |
| Motor And Drivers: | Japan Panasonic Servo Motor And Drivers | Warranty: | 1 Years For Whole Machine |
| Fiber Laser Power: | 300W RAYCUS Fiber Laser Device |
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

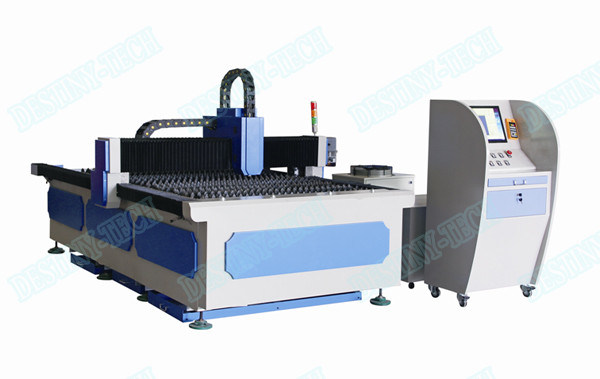

DT-1325/1530 Fiber 300W steel laser cutting machine with racks transmission system
Machine parameters
|
Machine Model |
DT-1325/ 1530 |
|
Working area |
1300*2500mm / 1500*3000mm |
|
Laser power |
300W Raycus brand fiber laser device |
|
laser head |
Friendness laser head , with auto sensor, adjust focal distance automatically |
|
Cutting thickness |
0.2-2mm stainless steel / 0.2-4mm carbon steel |
|
Cooling system |
CW-6100 water chiller |
|
Rated power |
10-100% |
|
Laser wavelength |
1060nm |
|
X,Y-axis location accuracy |
±0.01mm |
|
X,Y-axis repeat location accuracy |
±0.01mm |
|
X,Y-axis fast moving speed |
25m/min |
|
X,Y-axis max cutting speed |
20m/min |
|
Min. cutting line width |
0.01 |
|
Machine size |
4.0×2.5×1.5m |
|
After-sale service |
Technician available for training and installation |
Machine configurations
|
Term |
Model |
Parts |
Amount |
Brand |
|
1 |
DY FIBER 500W |
Machine bed |
1 set |
DESTINY-TECH |
|
2 |
Fiber laser device |
1 set |
China Raycus |
|
|
3 |
Laser head |
1 set |
Friendness laser head |
|
|
4 |
Water chiller |
1 set |
CW 6100 |
|
|
5 |
Servo motor |
3 sets |
Panasonic |
|
|
6 |
Control system |
1 set |
Bochu (Cypcut) system |
|
|
7 |
Racks |
2 sets |
Imported |
|
|
8 |
Working area |
1300 * 2500mm 1500 * 3000mm |
Working area optional |
|
Machine Features
DT -1325/ 1530 300W Fiber laser cutting machine is designed for the customers who want to cut steel below 4mm thickness by laser cutter.
With stable and practical advantages, this machine have a high price performance. We designed to satisfy the
customer who want lower investment while higher stability laser machines. We chose to use RAYCUS brand high stability laser generator, gantry bed structure which ensure the machine stability,fast cutting and long life span.The machine can cut 0-2mm stainless steel(Max. 3mm) and 0-4mm carbon steel. You can choose the working size according your steel sheet size . It's with high-performance transmission system Japanese Panasonic servo motor & Rack and gear,The motion system is excellent , that suit for the fast working. We adopts Friendness brand auto follow-up cutting head system with high sensitivity and stability. The cutting head moving with the variation of the plate.The cut-off point position will remain unchanged. The kerf is flat and smooth enough no need to handle it again.Meanwhile, the machine can be use to cut both of the flat materials and curving materials. This machine is with high performance-price ratio, Low cost for using, Low fees for the future maintain .With drawer to collect the garbage, easy to change the gas valve. Compare with same fiber industry , it's really a good choice with lower price to do same job .
Applicable materials and industries
This fiber laser can cut stainless steel, mild steel,titanium plate, iron, etc It's widely used in aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metalparts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
