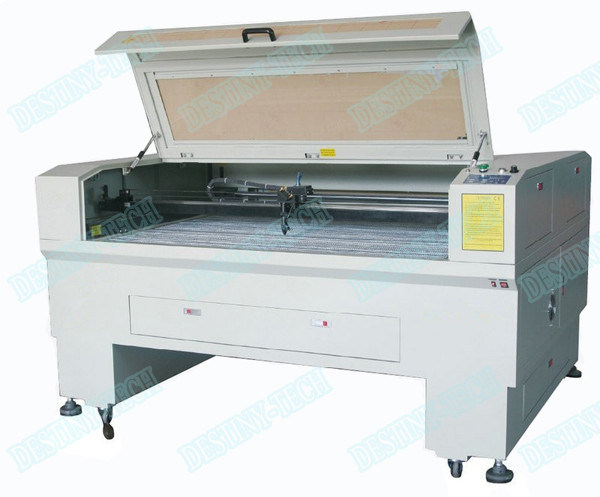

CCD 100W CNC CO2 seal laser cutting machine with scanning camera for label cutting

CCD 100W CNC CO2 seal laser cutting machine with scanning camera for label cutting

CCD 100W CNC CO2 seal laser cutting machine with scanning camera for label cutting

Product Details:

Place of Origin: Linyi city,China
Brand Name: DESTINY-TECH
Certification: CE certificate 2 yeas warranty
Model Number: DT-1610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-7000 USD
Packaging Details: CE standard wooden case
Delivery Time: 7 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
Laser Power: 80W ,100W , 150W ,180W Working Area: 1600mm*1000mm
Blower: Air Compressor Gassing System: Exhaust Fan And Air Pipe
CCD: Scanning Camera CCD Working Area: 300mm*300mm

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

DT-1610 Auto CCD CO2 Laser cutting machine

Machine parameters

Machine Model

DT-1610 auto CCD (300*300mm)

Working Size

1600*1000 mm / 63 in*39.3 in   (X * Y axis)

Laser Power

80w/100w

Laser Type

Sealed CO2 glass laser tube, water-cooling ,10.6nm

Driving System

3-Phase Stepper Motor &Belts transmission

Cutting Speed

0-40000mm/min

Engraving Speed

0-70000 mm/min

Laser Output Control

1-100% software setting

Resetting Position Accuracy

≤±0.01

Camera Pixe

320,000

Resolution

< 4500 DPI

Power Supply

220V/50Hz,  110V/60Hz,

Operating Temperature

0-45℃

Operating Humidity

5-95%

Operating System

DSP CNC Control System in Win XP, Win 7

Graphic Format Supported

BMP, PLT, AI, DST, DXF

Software Supported

Corel draw, Photoshop, AutoCAD, Tajima

Color Separation Yes











































































Machine descriptions

DT series CCD laser cutting machines are specially for deformation of cloth,in the camera positioning visual systerm and cutting down the software work ,ccd laser cutting machine can compensate automatically to pinpoint deformation of the fabric and ensure the accuracy of cutting ,the laser cutting machine with automatic camera positioning will search for the workpiece which is processed after the picture is imported into computer by the vision system machine,it can prevent the inaccuracy of the cutting correctly. Because of the poweful DSP technology of high-end data processing ,specific design and precise machinery

software of mechanical systerm,meticulous in high-speed operation conditions ,cutting lines and curves no deformation rapid continuous curvilinear cutting funtion.

Applicable materials

Fabrics,leather,paper.bamboo ware,acrylic,glass,thin film and canvas,etc.

Applicable industries

Garments sampling,trademark,leather industry,shoemaking,decoration,advertisement industries,etc.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

3. There are detail machine operation manual and video CD sent together with the machine.

If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
