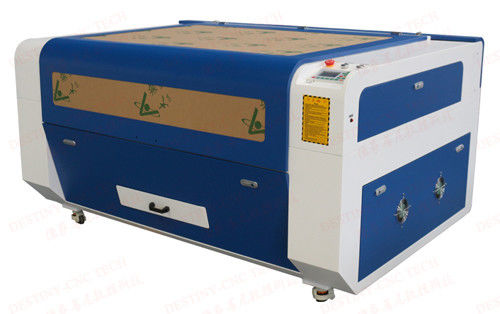

Acrylic laser engrvaing & cutting DT-1390 100W CO2 laser engraving and cutting machine

Acrylic laser engrvaing & cutting DT-1390 100W CO2 laser engraving and cutting machine

    • Acrylic laser engrvaing & cutting DT-1390 100W CO2 laser engraving and cutting machine
    • Acrylic laser engrvaing & cutting DT-1390 100W CO2 laser engraving and cutting machine
  • Acrylic laser engrvaing & cutting DT-1390 100W CO2 laser engraving and cutting machine

    Product Details:

    Place of Origin: Jinan city,China
    Brand Name: DESTINY
    Certification: CE and FDA certificate 2 yeas warranty
    Model Number: DT-1390

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-7000 USD
    Packaging Details: CE standard wooden case
    Delivery Time: 7 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: CO2 Laser Cooling Type: Water Cooled
    Laser Power: 60W,80W ,100W , 150W ,180W Working Area: 1300mm*900mm

    DT 1300*900mm CO2 laser engraving and cutting machine

    Performance Features:

    DT-1390 laser engraving and cutting machine is one  most popular laser model.We can make the body as per your different requiement.The mahcine is high configuration with 3 phase stepper motor laser machine.The standard transmission is stong belt .You can also choose ballscrew servo m otor transmission.DT-1390 double heads laser machine improve the working efficiency.It can engrave and cut at the same time or first to engrave then to cut.

    We innovate the DT-1390 laser machine body,its height is most suit to worker.1.3 *0.9 m worktable,you can choose oxidated tool section or high precision honeycomb platform as per your materials feature.There are two doors behind and front machine.It extend the working area,easier to put down the materials.You can choose up&down platform or material hutch .

    The machine is installed four wheels,it's easier to move ,you can change any places you like.In addition,there are four footstands near the wheels.When you start to use machine,you just put them down on the earth.It can make the laser engraving and cutting more stable.

    We adopt advanced DSP control system,and high definition microcomputer control panel with USB outline interface.You can choose the languages,such as Chinese,English,Korean,Russian etc.

    Machine parameters

    Model

    DT-1390

    Laser Power

    80w/100w/150w/180w

    Laser Type

    sealed CO2laser tube,water-cooled,10.6um

    Work Area

    1300 X 900 mm

    Cooling Type

    Water-cooled and Protection System

    Engraving Scanning Speed

    0-70000 mm/min

    Cutting Speed

    0-5000mm/min

    Laser Output Control

    1-100% Software Setting

    Smallest Character Engraving

    English: 1.0X1.0 mm

    Highest Scanning Precision

    2500DPI

    Power Supply

    AC 110-220V±10%, 50-60Hz

    Operating Temperature

    0°-45°C

    Operating Humidity

    5%-95%

    Locating Precision

    ≤±0.01mm

    Supported File Format

    DSTPLTBMPDXFAI

    Compatible Software

    TAJIMACORELDRAWPHOTOSHOPAUTOCADAll

    Type of AUTOCAD Software in cloth

    Driving System

    Stepper Electrical Motor

    Package Dimension

    2.02*1.95*1.4m

    Net Weight

    500 KGS

    Gross Weight

    600 KGS

    Optional Spare Parts

    Up-down Worktable, Rotary System, Honeycomb Worktable

    Removable Spare Parts

    Laser Tube and Lens

    Applicable Industries

    Model Industry(construction models, aviation and navigation models and wooden toys),advertisment, decoration, art crafts, electronics, and electric appliances, etc.

    Applicable Materials

    Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, lamp shade, ect.

    Our laser machines can be customized according to your special needs.

    The warranty after-sale service

    1).CE and FDA certificate,the machines are produced according to standard.

    2).Two years quality guarantee for whole machine except of laser tube and lens ;

    3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

    4).The machines delivery is quickly,delivery time is short.

    5).24 hours technical support by e-mail, calling or door-to-door service
    6).English software, user manual and detailed Videos CD
