    Product Details:

    Place of Origin: China
    Brand Name: RUIDA
    Certification: CE certificate
    Model Number: RD6445G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-400USD
    Packaging Details: Protecting package with carton
    Delivery Time: 3 working days
    Payment Terms: By T/T, Western Union
    Supply Ability: 0-5000 sets / month
    Express: DHL, Fedex, TNT, UPS, SF etc.
    Contact Now
    Detailed Product Description
    Controller Type: DSP CNC Control System USB Interface: With
    Software: Ruida V8 Axis Support: 4 Axis Control
    Wanrranty: 1 Year

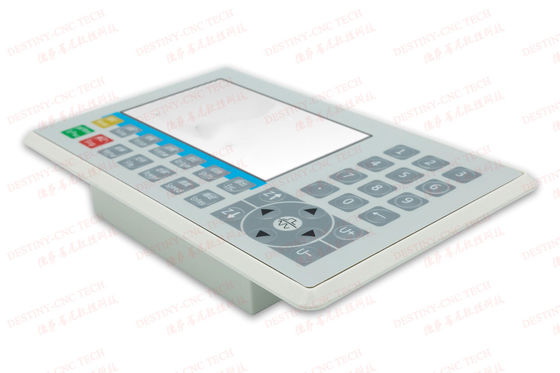

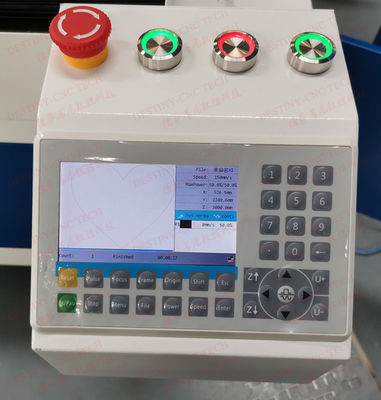

    RDC6445G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more perfect.

    CO2 Laser machine control system RUIDA RD6445G controller Laser cutting machine control card and control panel

    CO2 Laser machine control system RUIDA RD6445G controller Laser cutting machine control card and control panel

    CO2 Laser machine control system RUIDA RD6445G controller Laser cutting machine control card and control panel

    CO2 Laser machine control system RUIDA RD6445G controller Laser cutting machine control card and control panel

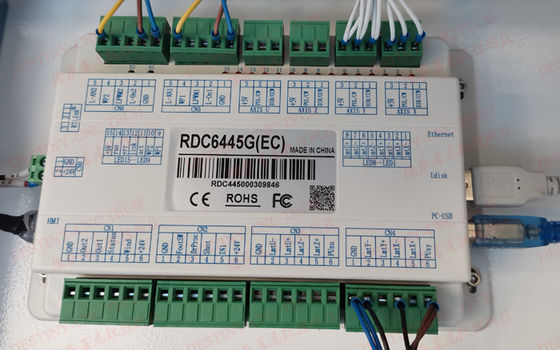

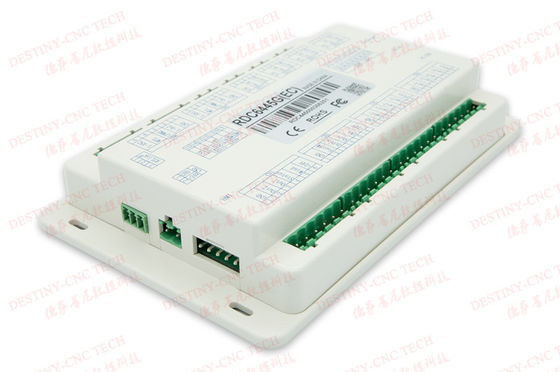

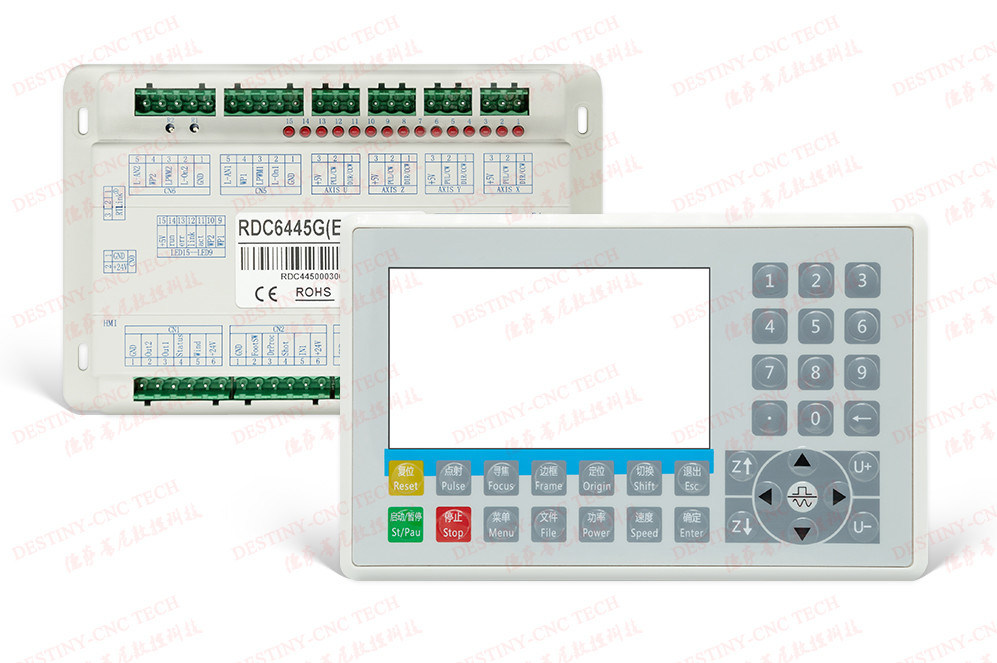

    RDC6445G controller



    Technical Parameters:



    1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;

    2. On-board 128M non-releasable memory;

    3. USB maximum transfer rate is 12M, the longest distance is 5 meters;

    4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;

    5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;

    6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can directly drive 24V / 5V DC relays

    7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;



    Function description:

    1. Support up to 4 servo / stepper motor control;

    2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface;

    3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;

    4. Support mobile APP;

    5. Support dual-head electric mutual shift control and super-format split cutting processing;

    6. Support dual-head asynchronous processing;

    7. Support large format vision, mark point visual cutting and projection cutting and other processing methods;
