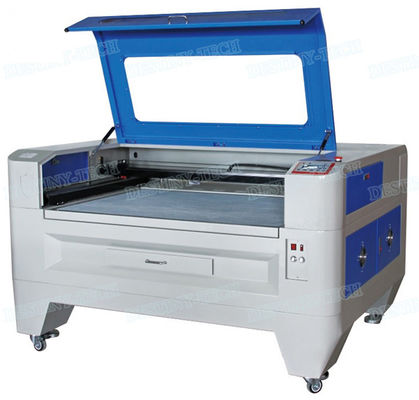

100W CO2 laser engraving and cutting machine for nonmetal material engraving

100W CO2 laser engraving and cutting machine for nonmetal material engraving

100W CO2 laser engraving and cutting machine for nonmetal material engraving

Product Details:

Place of Origin: Jinan city,China
Brand Name: DESTINY
Certification: CE and FDA certificate 2 yeas warranty
Model Number: DT-1390

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-7000 USD
Packaging Details: CE standard wooden case
Delivery Time: 7 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: CO2 Laser Cooling Type: Water Cooled
Laser Power: 60W,80W ,100W , 150W ,180W Working Area: 1300mm*900mm

DT 1300*900mm CO2 laser engraving and cutting machine

Performance Features:

DT-1390 laser engraving and cutting machine is one  most popular laser model.We can make the body as per your different requiement.The mahcine is high configuration with 3 phase stepper motor laser machine.The standard transmission is stong belt .You can also choose ballscrew servo m otor transmission.DT-1390 double heads laser machine improve the working efficiency.It can engrave and cut at the same time or first to engrave then to cut.

We innovate the DT-1390 laser machine body,its height is most suit to worker.1.3 *0.9 m worktable,you can choose oxidated tool section or high precision honeycomb platform as per your materials feature.There are two doors behind and front machine.It extend the working area,easier to put down the materials.You can choose up&down platform or material hutch .

The machine is installed four wheels,it's easier to move ,you can change any places you like.In addition,there are four footstands near the wheels.When you start to use machine,you just put them down on the earth.It can make the laser engraving and cutting more stable.

We adopt advanced DSP control system,and high definition microcomputer control panel with USB outline interface.You can choose the languages,such as Chinese,English,Korean,Russian etc.

Machine parameters

Model

DT-1390

Laser Power

80w/100w/150w/180w

Laser Type

sealed CO2laser tube,water-cooled,10.6um

Work Area

1300 X 900 mm

Cooling Type

Water-cooled and Protection System

Engraving Scanning Speed

0-70000 mm/min

Cutting Speed

0-5000mm/min

Laser Output Control

1-100% Software Setting

Smallest Character Engraving

English: 1.0X1.0 mm

Highest Scanning Precision

2500DPI

Power Supply

AC 110-220V±10%, 50-60Hz

Operating Temperature

0°-45°C

Operating Humidity

5%-95%

Locating Precision

≤±0.01mm

Supported File Format

DSTPLTBMPDXFAI

Compatible Software

TAJIMACORELDRAWPHOTOSHOPAUTOCADAll

Type of AUTOCAD Software in cloth

Driving System

Stepper Electrical Motor

Package Dimension

2.02*1.95*1.4m

Net Weight

500 KGS

Gross Weight

600 KGS

Optional Spare Parts

Up-down Worktable, Rotary System, Honeycomb Worktable

Removable Spare Parts

Laser Tube and Lens

Applicable Industries

Model Industry(construction models, aviation and navigation models and wooden toys),advertisment, decoration, art crafts, electronics, and electric appliances, etc.

Applicable Materials

Non-metal materials such as acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease,ABS boards, lamp shade, ect.

Our laser machines can be customized according to your special needs.

The warranty after-sale service

1).CE and FDA certificate,the machines are produced according to standard.

2).Two years quality guarantee for whole machine except of laser tube and lens ;

3).We have excellent egineers speaking English,they can go to your country to solve your questions of machine you can't solve;

4).The machines delivery is quickly,delivery time is short.

5).24 hours technical support by e-mail, calling or door-to-door service
6).English software, user manual and detailed Videos CD

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.
