Marble engraving DT-1325 Heavy CO2 Laser engraving machine with hydraulic up&down table

Marble engraving DT-1325 Heavy CO2 Laser engraving machine with hydraulic up&down table

Marble engraving DT-1325 Heavy CO2 Laser engraving machine with hydraulic up&down table

Product Details:

Place of Origin: Linyi city,China
Brand Name: DESTINY-TECH
Certification: CE certificate 2 yeas warranty
Model Number: DT-1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 0-12000 USD
Packaging Details: CE standard wooden case
Delivery Time: 10 workdays
Payment Terms: T/T advance
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
Laser Power: 60W,80W ,100W Working Area: 1300mm*2500mm
Blower: Air Pump Gassing System: Exhaust Fan And Air Pipe
Applicable Materials: Marble,granite , Glass, Stone , Wood ,plywood ,MDF, Fabric, Leather Etc. Worktable: Hydraulic Up&down Table

DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

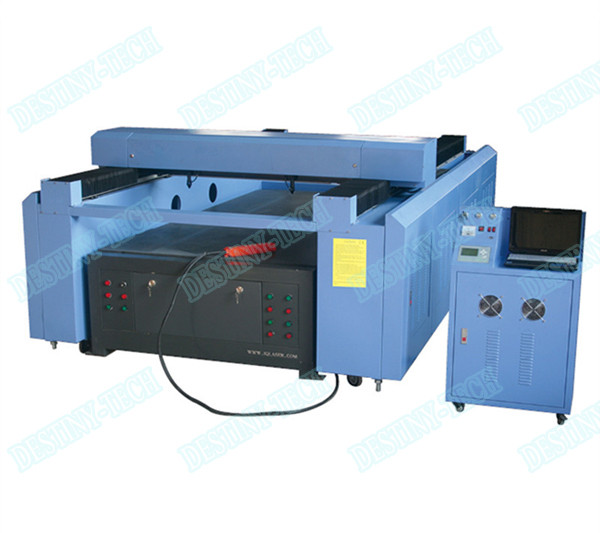

DT-1325 Heavy stone CO2 Laser engraving machine with hydraulic up&down table

Machine parameters

Machine Model

DT-1325 heavy duty

Working Size

1300*2500 mm / 51.2 in * 98.4 in ( X * Y axis)

Laser Power

80w/100w

Laser Type

Sealed CO2 glass laser tube, water-cooling ,10.6nm

Driving System

3-Phase Stepper Motor &Belts transmission

Cutting Speed

0-40000mm/min  (1575inch/min)

Engraving Speed

0-70000mm/min  (2756 inch/min)

Laser Output Control

1-100% software setting

Resetting Position Accuracy

≤±0.01

Smallest  Character

Chinese 2.0 *2.0mm English 1.0*1.0mm

Highest Scanning precision

2500 DPI

Power Supply

220V/50Hz,  110V/60Hz,

Operating Temperature

0-45℃

Operating Humidity

5-95%

Operating System

DSP CNC Control System in Win XP, Win 7

Graphic Format Supported

BMP, PLT, AI, DST, DXF

Software Supported

Corel draw, Photoshop, AutoCAD, Tajima

Optional device

Up &down table ,Rotary device ,Red light  pointer

Color separation

Yes

















































































Machine descriptions

For enrgaving the big tombstone or other big marble ,granite etc. stones . We made a special laser engraving machine with download flat table and wheels . DT-1325 heavy duty laser engraving machine is special for stone engraving processing . Its worktable is with hydraulic up&down system , this can stand and keep the thick marble stone through on the table.That will be easier and fast to put heavy stone . The flat table is made by aluminium alloy board .It can hold up 10 T heavy material .It also keep the life longer . For tombstone , stone decoration or some stone processing .It's a good choice .

Applicable materials and indusctries

Marble,granite, glass, tiles,tombstone,ceramics ,wood ,plywood, acrylic or other thick materials etc.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

3. There are detail machine operation manual and video CD sent together with the machine.

If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
