Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine

Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine

    • Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine
    • Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine
    • Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine
  • Textile roll laser cutting DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine

    Product Details:

    Place of Origin: Linyi city,China
    Brand Name: DESTINY-TECH
    Certification: CE certificate 2 yeas warranty
    Model Number: DT-1830

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-15000 USD
    Packaging Details: CE standard wooden case
    Delivery Time: 15 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: Sealed CO2 Laser Tube Cooling Type: Water Chiller Cooling System
    Laser Power: 80W ,100W , 150W Working Area: 1800mm*3000m
    Blower: Air Compressor Gassing System: Exhaust Fan And Air Pipe

    DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

    DT-1830 Large bed auto feeding fabric CO2 Laser cutting machine

    Machine parameters

    Machine Model

    DT-1830 Large bed auto feeding

    Working Size

    1800 * 3000 mm / 71 in * 118 in ( X * Y axis)

    Laser Power

    80w/100w/150w

    Laser Type

    Sealed CO2 glass laser tube, water-cooling ,10.6nm

    Driving System

    3-Phase Stepper Motor &Belts transmission

    Cutting Speed

    0-40000mm/min  (1575inch/min)

    Engraving Speed

    0-60000mm/min  (2362 inch/min)

    Laser Output Control

    1-100% software setting

    Resetting Position Accuracy

    ≤±0.01

    Smallest  Character

    Chinese 2.0 *2.0mm English 1.0*1.0mm

    Highest Scanning precision

    2500 DPI

    Power Supply

    220V/50Hz,  110V/60Hz,

    Operating Temperature

    0-45℃

    Operating Humidity

    5-95%

    Operating System

    DSP CNC Control System in Win XP, Win 7

    Graphic Format Supported

    BMP, PLT, AI, DST, DXF

    Software Supported

    Corel draw, Photoshop, AutoCAD, Tajima

    Optional device

    Red light  pointer

    Color separation

    Yes























































    Product descriptions

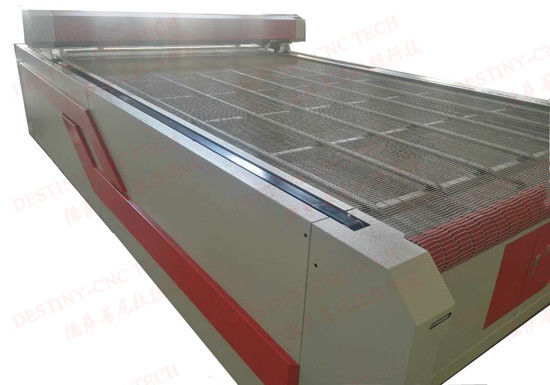

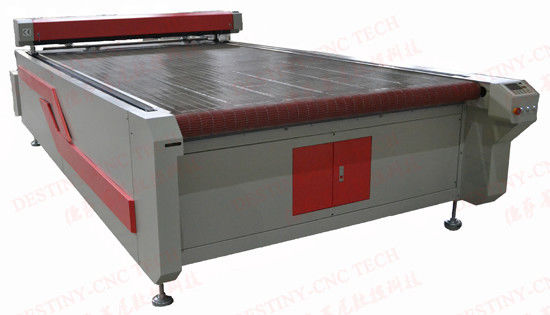

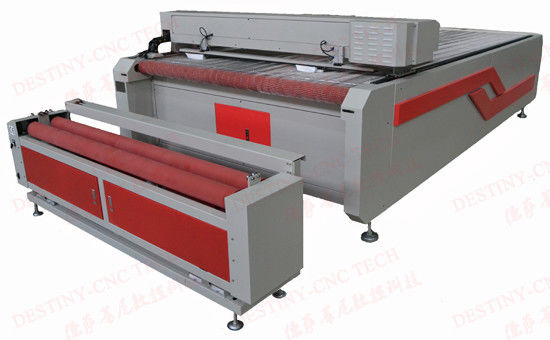

    DT-1830 laser cutting machine with auto feeding system adopts crawler-type worktable,dual laserhead mutual move processing and auto-feeding system, the rolls of the machine are able to roll up the large material automatically,providing the fast cutting speed,high utilization rate of material and continuous cutting.

    Applicable Materials
    Cloth, fabric, leather, woolen, paper, film etc. soft materials

    Applicable Industries
    Garment,car inside decoration materials ,leather,toys indsutry, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration,building upholster, package, printing, paper product and other industries.

    After-sale service and Warranty

    1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

    2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .

    3. There are detail machine operation manual and video CD sent together with the machine.



    If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
