|Place of Origin:||Linyi city,China|
|Certification:||CE certificate 1 yeas warranty|
|Model Number:||DT-10/ 20/30/50|
|Minimum Order Quantity:||1 set|
|Packaging Details:||CE standard wooden case|
|Delivery Time:||7 workdays|
|Payment Terms:||T/T advance|
|Supply Ability:||500 sets/month|
|Laser Type:||Fiber Laser Device||Cooling Type:||Air Cooling System|
|Laser Power:||Max. , Raycus ,IPG Brand 10W,20W,30W,50W||Working Area:||100mm*100mm;200mm*200mm;300mm*300mm|
|Warranty:||1 Years For Whole Machine||Optional Device:||Rotary Device|
|Applicable Materials:||Stainless Steel , Carbon Steel , Iron, Plastic Etc.|
DESTINY-TECH ideas: To be your counselor, to be your partner, to be your friends.

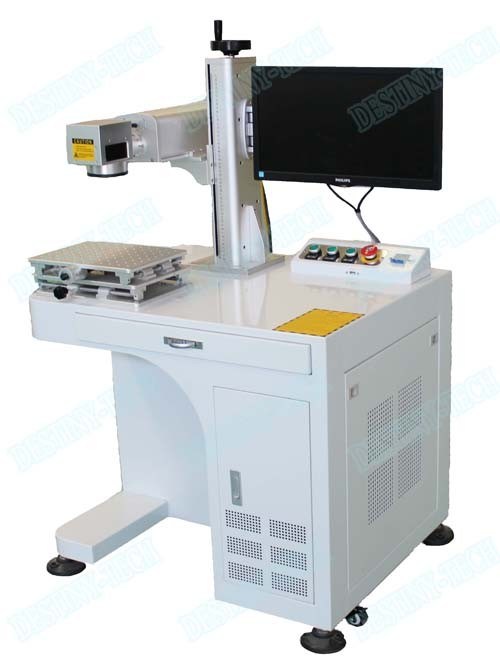

DT-10w/20w/30w/50w desktop fiber laser marking machine
Wave length of laser
Laser repetition frequency
The minimum focus diameter
110V/60Hz or 220V/ 50Hz
All kinds of metal and part of Non-metal Materials
PLT, BMP, DXF, JPG, TIF, AI etc
Standard plywood case for export
DT Fiber marking machine is permanent and indelible marking process, which stands against wiping, scuffing, impacts, wear and tear, can only be removed by grinding or surface removal. Thus the machinesustains authenticity of your brand against sort of tempering .
This machine is non-contact type process. It does not produce any deformation in product unlike in punching, stamping, pneumatic pin, vibratory pencil etc. This gives accurate and aesthetic marking independent of hardness of material.
This machine is highly flexible process compared to any other marking process. It can mark any images and fonts without changing any punch, die, stencil etc. unlike other conventional process.
Since laser can produce very fine beam with accuracy in micron, many accurate and micro details with precision can be marked with laser marking. Laser can produce aesthetic images which otherwise difficult to create with other marking process.
Since Laser marking is non-contact type, no pre or post processing is required, which in turn significantly increase marking productivity.
Laser marking helps significantly in cutting operating cost by reducing labor cost, tool cost, consumable cost, set up time, rejection improved cycle time.
Fiber laser is pumped with special high power multimode diodes via cladding surrounding as single mode core. Life of this individual multimode diode is quite long corresponding to conventional diode pump solid-state laser (DPSSL).
Fiber laser is virtually Maintenance Free compared to other conventional laser, as it doesn’t have mirror to be aligned and almost no optical components, which could have been damaged.
Fiber laser is pumped by multiple identical diodes all feeding same gain medium, whereas DPSSL is pumped by a single diode bar. In the unlikely event of failure of any single pump diode in the fiber laser, the laser continues to work with slightly lower specification. In case of DPSSL, the total laser fails if diode stops working.
Electrical Engineering and Electrical part and component ;Telecommunication product and Mobile communications(cover,battery,keyboard);Jewellery,eyeglass,clocks and craft;Building materials,PVC pipe;Car motor car spare part;Insturment and meters and cutting tool;plastic case;aviation and aerospace;military product;hardware fitting and accessory;sanitary appliance
stationery;food and beverage ;medicine package andmedical instrument;solar Pv industry: silicon wafer;rubber epoxy resin ABS Printing ink Coating film.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
