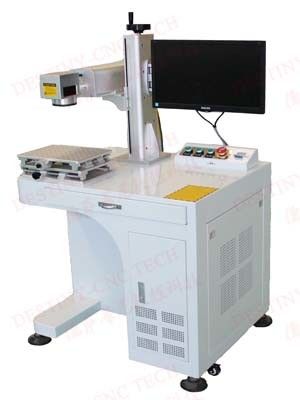

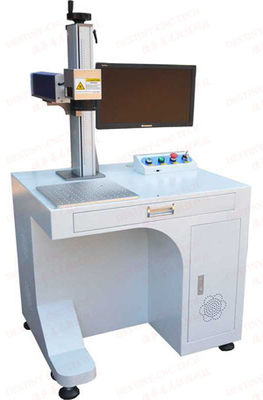

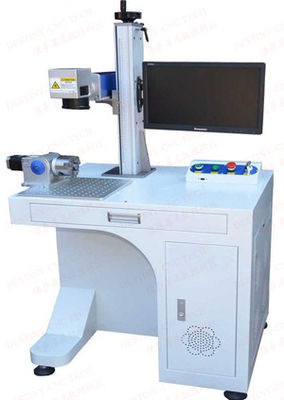

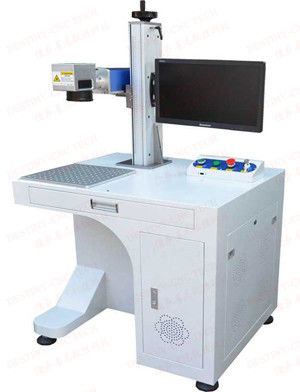

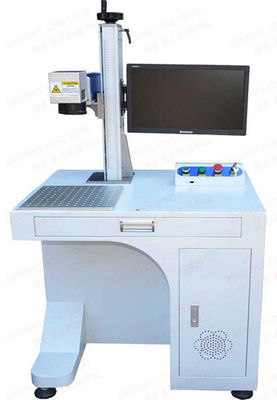

DT-20w 30w 50w desktop fiber laser marking machine for metal marking

DT-20w 30w 50w desktop fiber laser marking machine for metal marking

    • DT-20w 30w 50w desktop fiber laser marking machine for metal marking
    • DT-20w 30w 50w desktop fiber laser marking machine for metal marking
    • DT-20w 30w 50w desktop fiber laser marking machine for metal marking
    • DT-20w 30w 50w desktop fiber laser marking machine for metal marking
    • DT-20w 30w 50w desktop fiber laser marking machine for metal marking
  • DT-20w 30w 50w desktop fiber laser marking machine for metal marking

    Product Details:

    Place of Origin: Linyi city,China
    Brand Name: DESTINY-CNC TECH
    Certification: CE certificate 1 yeas warranty
    Model Number: DT-20/30/50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-15000USD
    Packaging Details: CE standard wooden case
    Delivery Time: 7 workdays
    Payment Terms: T/T advance
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Laser Type: Fiber Laser Device Cooling Type: Air Cooling System
    Laser Power: Max. , Raycus ,IPG Brand 20W,30W,50W Working Area: 100mm*100mm;200mm*200mm;300mm*300mm
    Warranty: 1 Years For Whole Machine Optional Device: Rotary Device
    Applicable Materials: Stainless Steel , Carbon Steel , Iron, Plastic Etc.

    DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.

    DT-20w/30w/50w desktop fiber laser marking machine

    Machine parameters

    Type specification



    DT-20

    DT-30

    DT-50

    Wave length of laser

    1064nm

    Laser repetition frequency

    20kHz~100kHz

    Laser power

    10W

    20W

    30W

    50W

    Marking scope

    100*100 /200*200mm/300*300mm

    Laser sources

    Fiber module

    Laser Head

    Scanning head

    The minimum focus diameter

    20μm

    Minimal character

    0.01mm

    Marking speed

    ≤7000mm/s

    Repeated accuracy

    0.0025mm

    Cooling ways

    Force-air Cooling

    Power supply

    110V/60Hz or 220V/ 50Hz

    Process Material

    All kinds of metal and part of Non-metal Materials

    Support format

    PLT, BMP, DXF, JPG, TIF, AI etc

    Package

    Standard plywood case for export

    Machine features

    DT Fiber marking machine is permanent and indelible marking process, which stands against wiping, scuffing, impacts, wear and tear, can only be removed by grinding or surface removal. Thus the machinesustains authenticity of your brand against sort of tempering .

    This machine is non-contact type process. It does not produce any deformation in product unlike in punching, stamping, pneumatic pin, vibratory pencil etc. This gives accurate and aesthetic marking independent of hardness of material.

    This machine is highly flexible process compared to any other marking process. It can mark any images and fonts without changing any punch, die, stencil etc. unlike other conventional process.

    Since laser can produce very fine beam with accuracy in micron, many accurate and micro details with precision can be marked with laser marking. Laser can produce aesthetic images which otherwise difficult to create with other marking process.

    Since Laser marking is non-contact type, no pre or post processing is required, which in turn significantly increase marking productivity.

    Laser marking helps significantly in cutting operating cost by reducing labor cost, tool cost, consumable cost, set up time, rejection improved cycle time.

    Fiber laser is pumped with special high power multimode diodes via cladding surrounding as single mode core. Life of this individual multimode diode is quite long corresponding to conventional diode pump solid-state laser (DPSSL).

    Fiber laser is virtually Maintenance Free compared to other conventional laser, as it doesn’t have mirror to be aligned and almost no optical components, which could have been damaged.

    Fiber laser is pumped by multiple identical diodes all feeding same gain medium, whereas DPSSL is pumped by a single diode bar. In the unlikely event of failure of any single pump diode in the fiber laser, the laser continues to work with slightly lower specification. In case of DPSSL, the total laser fails if diode stops working.

    Applicable materials

    Electrical Engineering and Electrical part and component ;Telecommunication product and Mobile communications(cover,battery,keyboard);Jewellery,eyeglass,clocks and craft;Building materials,PVC pipe;Car motor car spare part;Insturment and meters and cutting tool;plastic case;aviation and aerospace;military product;hardware fitting and accessory;sanitary appliance
    stationery;food and beverage ;medicine package andmedical instrument;solar Pv industry: silicon wafer;rubber epoxy resin ABS Printing ink Coating film.

    After-sale service and Warranty

    1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

    2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,          they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve        yourself online .

    3. There are detail machine operation manual and video CD sent together with the machine.

    If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-TECH welcome you .
